Jetson NanoでIntel RealSenseを試してみる(3)

以前から開発を進めているピープルカウンタ[1]で, 人物の検出にYOLOv3[2]を試してみたいと思い, Jetson Nanoを購入した.
前回は, Jetson NanoでYOLOv3のセットアップについて紹したが, 今回はD415の出力をYOLOv3の入力として物体検知を動かすところを紹介する.


関連記事:
Jetson NanoでIntel RealSenseを試してみる(1)
Jetson NanoでIntel RealSenseを試してみる(2)
・Jetson NanoでIntel RealSenseを試してみる(3)
Jetson NanoでIntel RealSenseを試してみる(4)


1. ctypes利用
PythonからYOLOv3を利用する方法については, 「YOLOv3を試してみる(3) 」[3]に記載したように, いくつか方法がある.
今回は, ctypes(pythonC言語のライブラリを操作するためのライブラリ)を利用する方法を用いた.

1.1 PythonからYOLOv3呼び出し
オリジナルのリポジトリ[4]をクローンし, "darknet"のディレクトリ下のpython/darknet.pyなるサンプルコードがあるので, これをベースに, OpenCVの画像データを渡してYOLOv3で物体検出を行い, 検出結果を返すように, 以下のような処理を追加した.

# OpenCVの画像データをYOLOv3の画像データに変換
def cvimage_to_image(img):
    img = img.transpose(2, 0, 1)
    c, y, x = img.shape
    img = (img / 255.).flatten()
    data = c_array(c_float, img)
    image = IMAGE(x, y, c, data)
    return image

# YOLOv3を呼び出して, 物体検出を実行
# (detect関数を参照のこと)
def detect_cvimage(net, meta, image, thresh=.5, hier_thresh=.5, nms=.45):
    im = cvimage_to_image(image)
    num = c_int(0)
    pnum = pointer(num)
    predict_image(net, im)
    dets = get_network_boxes(net, im.w, im.h, thresh, hier_thresh, None, 0, pnum)
    num = pnum[0]
    if (nms): do_nms_obj(dets, num, meta.classes, nms);

    res = []
    for j in range(num):
        for i in range(meta.classes):
            if dets[j].prob[i] > 0:
                b = dets[j].bbox
                res.append((meta.names[i], dets[j].prob[i], (b.x, b.y, b.w, b.h)))
    res = sorted(res, key=lambda x: -x[1])
    free_detections(dets, num)
    return res

1.2 D415処理ルーチン
D415の入力処理のメインループから, 先のdetect_cvimage関数を呼び出すことで, 物体検出を行う.

#############################################
##      D415 + YOLOv3
#############################################
import pyrealsense2 as rs
import numpy as np
import cv2
import time

import darknet

WIDTH = 640
HEIGHT = 480
FPS = 15

OUTPUT_VIDEO_FILE = 'output.avi'

# Configure depth and color streams
pipeline = rs.pipeline()
config = rs.config()
config.enable_stream(rs.stream.color, WIDTH, HEIGHT, rs.format.bgr8, FPS)

# YOLOv3設定
net = darknet.load_net(b'./cfg/yolov3-tiny.cfg', b'./weights/yolov3-tiny.weights', 0)
meta = darknet.load_meta(b'./cfg/yolov3-tiny.data')

# 結果出力ファイル準備
fourcc = cv2.VideoWriter_fourcc(*'DIVX')
output_movie = cv2.VideoWriter(OUTPUT_VIDEO_FILE, fourcc, 15, (WIDTH, HEIGHT))

# ストリーミング開始
profile = pipeline.start(config)

try:
    while True:
        # フレーム待ち(Color)
        frames = pipeline.wait_for_frames()
        color_frame = frames.get_color_frame()
        if not color_frame:
            continue

        # フレーム画像取得
        image = np.asanyarray(color_frame.get_data())
        rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

        # YOLOv3物体検出
        objs = darknet.detect_cvimage(net, meta, rgb)
        # 検出結果表示
        for obj in objs:
            x, y, w, h = obj[2]
            x, y, hw, hh = int(x), int(y), int(w/2), int(h/2)
            print('{} : {}, {}, {}, {}'.format(obj[0], x, y, hw*2, hh*2))
            image = cv2.rectangle(image, (x-hw, y-hh), (x+hw, y+hh), (0, 0, 255), 2)

        # ファイル出力
        output_movie.write(image)
        # 入力&検出結果表示
        cv2.namedWindow('RealSense', cv2.WINDOW_AUTOSIZE)
        cv2.imshow('RealSense', image)
        if cv2.waitKey(1) & 0xff == 27:
            break

finally:
    # ストリーミング停止
    pipeline.stop()
    output_movie.release()
    cv2.destroyAllWindows()

1.3 動作確認

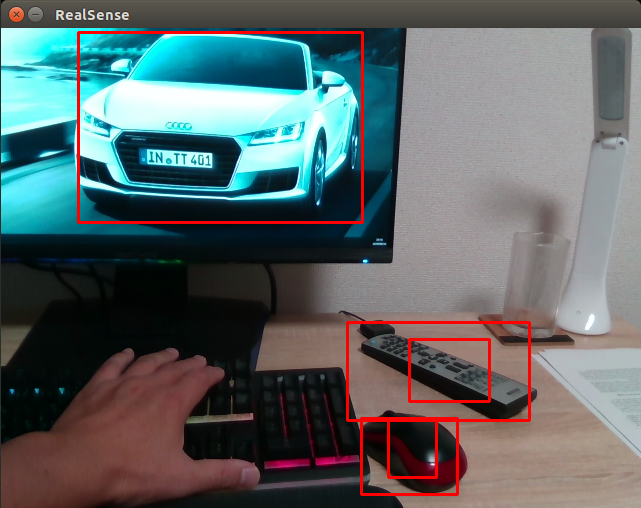

D415を使って動作検証を行ったところ, 一応物体検出できているようだが, フレーム毎の処理が完全に間に合っていない.
f:id:moonlight-aska:20190828231844p:plain:w500

どこの処理で時間がかかっているか, 調べてみた.

  (省略)
[yolo] params: iou loss: mse, iou_norm: 0.75, cls_norm: 1.00, scale_x_y: 1.00
Total BFLOPS 5.571
 Allocate additional workspace_size = 52.43 MB
Loading weights from ./weights/yolov3-tiny.weights...
 seen 64
Done!
Loaded - names_list: data/coco.names, classes = 80
c_array 0.4820216559992332
predict_image 0.24248922199967637
detect_cvimage 0.790845716000149
Gtk-Message: 23:04:53.687: Failed to load module "canberra-gtk-module"
c_array 0.4701981270000033
predict_image 0.10289384199950291
detect_cvimage 0.6075017419998403
c_array 0.4704276900001787
predict_image 0.0853231870005402
detect_cvimage 0.5848415290001867
c_array 0.47496766799940815
predict_image 0.09125199099980819
detect_cvimage 0.5956493580006281
c_array 0.44825363700056187

その結果, 約0.6s/frameかかっており, OpenCVの画像データからYOLOv3に渡す画像データに変換する処理(c_array in darknet.py)で時間がかかていることが判明.

def c_array(ctype, values):
    arr = (ctype*len(values))()
    arr[:] = values
    return arr

コードがシンプルなだけに, これは簡単には高速できそうにないので, ctypesを使用する方法はいったん中断.
(どなたか, ここ高速化した人があれば教えてくださ~い.)

次回はもう一つのkeras-yolo3を試してみようと思う.

----
参照URL:
[1] ピープルカウンタを考えてみる(1) ~ (5)
[2] YOLO: Real-Time Object Detection
[3] YOLOv3を試してみる(3)
[4] GitHub - pjreddie/darknet: Convolutional Neural Networks
